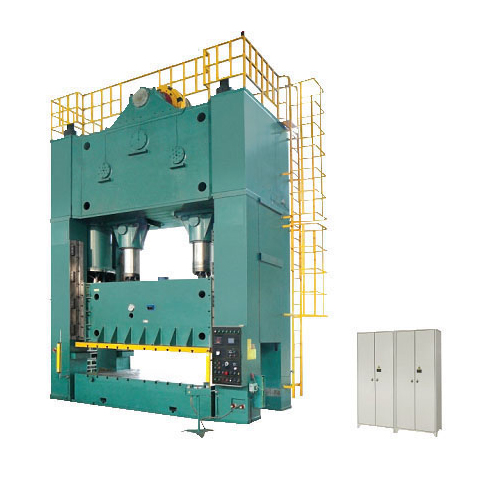

Cross Shaft – HOLP – Double Point- Dry Clutch – Fixed Stroke – Plunger Guided – Mechanical Power Press – H Frame

Features

  • Welded Steel plate framework with cross beam, column and the base tightened and combined into one body by taut bolts.
  • Main transmission pair adopts herringbone gears.
  • Slide guiding adopts eight-face orthogonal guide rail or four-face with angles of 450 degree guide rail.
  • Pneumatic friction clutch and brake.
  • Equipped with hydraulic overload protecting device.
  • Automatic oil lubrication system with regular time and capacity.
  • Duplex valves imported from japan.
  • Controlled by PLC with international brand.
  • Buttons, Indicators, AC contactors, Air circuit breakers and other controlling devices are imported from international brand.
  • Double loop control by imported electronic and mechanical cam controller.
  • Air cushion included.
  • Optional: front-back moving bolster, hydraulic cushion, low speed shut height adjustment and transmission system, light curtain
  • JC36 series does not have guiding column and sleeves, series adopts guiding column and sleeves. The height in the technical parameters only confined ti JD36 series.
  • Js series with T cross moving bolster, adjustable stroke of air cushion, four-side 450 guide rail, guiding column and sleeves, combined wet clutch. (international brand).
Category:

Specifications

Description JC36-250
JD36-250		 JC36-400
JD36-400		 JC36-500
JD36-500		 JC36-630
JD36-630
Nominal force kN 2500 4000 5000 6300
Stroke under nominal force mm 13 13 13 13
Slide block stroke mm 400 400 500 500
Number of stroke min-1 20 15 12 10
Max die set height mm 600 750 900 1000
Die set height adjustment mm 250 315 340 340
Worktable dimensions
(F・B * L・R * H）		 mm 1250*2770*160 1600*2800*170 1600*3300*200 1600*3450*200
Dimensions of side block bottom surface （F・B * L・R） mm 1050*2560 1600*2800 1600*3150 1600*3300
Stroke of materials to be punched
(rigid)		 mm 140 150 200 200
Distance between Gibs mm 2620 2780 3250 3450
Cushion
(Optional)		 Pressing / Ejection force kN 510/510 600/600 800/800 1000/1000
stroke mm 200 200 220 240
Number one cap one cap one cap one cap
Outline dimenstion FB mm 2800 3100 3100 3200
RL mm 4600 5000 5300 5700
Height above floor mm 6000 6700 7600 7700
Total weight T 55 95 110 140
Main motor capacity kW 37 55 55 75
Direction for the displacement of worktable / / / /
Description JC36-800
JD36-800		 JC36-800f
JD36-800F		 JS36-630B JS36-1000B
Nominal force kN 8000 8000 6300 10000
Stroke under nominal force mm 13 13 13 13
Slide block stroke mm 500 500 500 400
Number of stroke min-1 10 10 12-18 12-18
Max die set height mm 1000 1000 1300 1300
Die set height adjustment mm 500 500 400 400
Worktable dimensions
(F・B * L・R * H）		 mm 1800*4000*240 1800*4000 1900*3600 1900*3600
Dimensions of side block bottom surface （F・B * L・R） mm 1600*3980 1600*3980 1800*3600 1800*3600
Stroke of materials to be punched
(rigid)		 mm 200 200 160 160
Distance between Gibs mm 3700 3700 3600 3800
Cushion
(Optional)		 Pressing / Ejection force kN 1300/1300 1300/1300 1000/1000 1000/1000
stroke mm 240 50-240 50-240 50-240
Number one cap one cap 2 2
Outline dimenstion FB mm 3200 3100 4350 4600
RL mm 6200 6200 6300 6950
Height above floor mm 8100 8100 8000 8900
Total weight T 150 185 220 240
Main motor capacity kW 90 90 90 110
Direction for the displacement of worktable /

Check out the technical data sheet and machine details in our brochure
