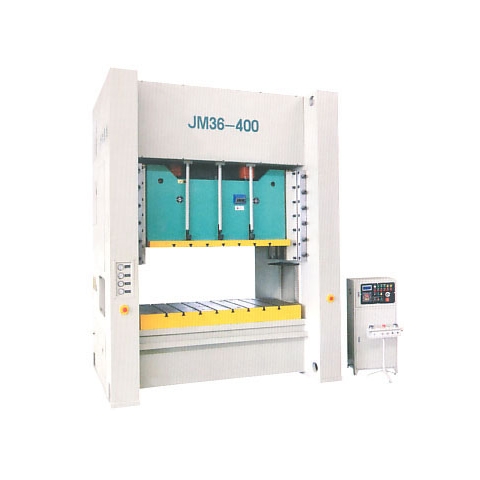

Cross Shaft – HOLP – Double Point – Wet Clutch- Fixed Stroke – Mechanical Power Press – H Frame

Features

  • The whole press is authenticated by CE.
  • Welded Steel plate framework with high intensity of machine body.
  • Double crankshaft pitmen totally eliminating side forces by reverse rotation.
  • Combined wet multi discs friction clutch and brake, imported dry type friction clutch and brake is optional.
  • Eight-side lengthened guide with high precision.
  • Equipped with hydraulic overload protecting device.
  • Electric compelling grease lubrication system.
  • Duplex valves with monitoring system.
  • Safety light curtain according to European class four standard.
  • Electronic cam device with intelligent top dead center stop function and several safety function.
  • Controlled by PLC with international brand.
  • Electrical cabinets, contactors, push buttons and indicators are all from international brand.
  • Equipped with several safety relays which meet European class four standard requirements.
  • Optional air cushion device, NC feeding machine and inverter with international brand to fulfill stroke adjustment.
Category:

Specifications

Description JM36-100
JMD36-110		 JM36-160
JMD36-160		 JM36-200
JMD36-200		 JM36-250
JMD36-250
Nominal force kN 1100 1600 2000 2500
Stroke under nominal force mm 5 6 7 8
Slide block stroke mm 180 200 250 280
Number of stroke Fixed min-1 50 45 35 30
Variable 35~65 30~55 25~45 20~35
Max die set height mm 400 450 500 550
Die set height adjustment mm 90 100 110 120
Worktable dimensions
（F・B * L・R）		 mm 680*1650 760*1850 840*2200 920*2300
Thickness of bolster mm 130 150 170 180
Dimensions of side block bottom surface （F・B * L・R） mm 580*1360 660*1580 740*1850 820*2000
Size of the handle hole
（Diameter * Depth）		 mm 3-φ60*70 3-φ60*75 3-φ60*90 3-φ60*90
Distance between columns of body mm 1750 1970 2300 2500
Dimensions of side hole
（F・B * L・R）
(Calculation from the plane of worktable)		 mm 650*350 700*380 800*420 860*470
Distance between upper surface of bolster and ground mm 950 970 1000 1100
Main motor capacity kW 15 18.5 22 30
Cushion
(Optional)		 Number 2 2 2 2
Knock out force kN 55 80 100 125
Knock out stroke mm 70 80 90 100
Knock out Area mm 370×520 420×620 470×720 520×820
Outline dimension
（F・B * L・R * H）		 mm 2250*2370*3500 2480*2590*3610 2680*3120*3930 2880*3370*4280
Net weight kg 21000 26000 33000 42000
Description JM36-315
JMD36-315		 JM36-400 JM36-500
Nominal force kN 3150 4000 5000
Stroke under nominal force mm 8 10 10
Slide block stroke mm 280 280 280
Number of stroke Fixed min-1 25 20 18
Variable 20~30 18~25 15~20
Max die set height mm 600 650 700
Die set height adjustment mm 120 120 120
Worktable dimensions
（F・B * L・R）		 mm 1000*2400 1100*2500 1200x*2900
Thickness of bolster mm 190 200 210
Dimensions of side block bottom surface （F・B * L・R） mm 900*2100 1000*2200 1100*2600
Size of the handle hole（Diameter× Depth） mm 3-φ70×95 3-φ70×95 3-φ80×100
Distance between columns of body mm 2600 2700 3100
Dimensions of side hole
（F・B * L・R）
(Calculation from the plane of worktable)		 mm 900*500 1020*550 1040*600
Distance between upper surface of bolster and ground mm 1120 1120 1150
Main motor capacity kW 37 45 55
Cushion
(Optional)		 Number 2 2 2
Knock out force kN 125 125 125
Knock out stroke mm 100 100 100
Knock out Area mm 520×820 520×820 520×820
Outline dimension
（F・B * L・R * H）		 mm 3220*3520*4580 3310*3640*4580 3880*4080*4750
Net weight kg 49000 55000 68000

Check out the technical data sheet and machine details in our brochure
