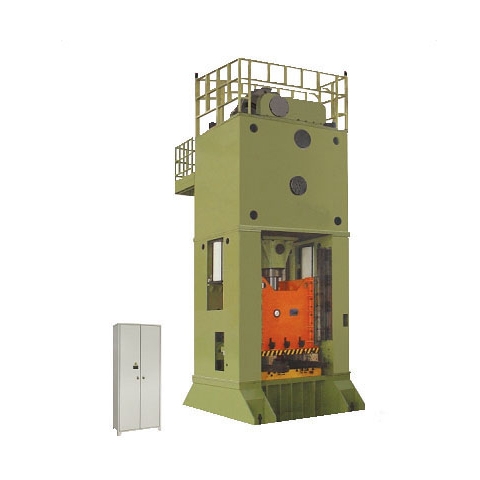

Cross Shaft- HOLP- Single Point- Dry Clutch- Fixed Stroke-Plunger Guided- Mechanical Power Press- H Frame

Features

  • Welded Steel plate framework with cross beam, column and the base tightened and combined into one body by taut bolts.
  • Pneumatic friction clutch and brake.
  • Equipped with hydraulic overload protecting device.
  • The whole machine can meet complicated structured material’s producing requirement by his reasonable structure and handsome outlook.
  • JC31 series does not have guiding column and sleeves, JD31 series adopts guiding column and sleeves.
  • JC31 adopts automatic grease lubrication system with regular time and capacity.
  • JD31 adopts automatic oil lubrication system with regular time and capacity.
  • Controlled by PLC with international brand.
  • Buttons, Indicators, AC contactors, Air circuit breakers and other controlling devices are imported from international brand.
  • Double loop control by imported electronic and mechanical cam controller.
  • Equipped optional air cushion and light curtain device.
  • The height in the technical parameters only confined to JD31 series.
Category:

Specifications

Description
1-POINT
JC31-250 JC31-315 JC31-400 JC31-500 JD31-250
Nominal force kN 2500 3150 4000 5000 2500
Stroke under nominal force mm 11 11 11 13 11
Slide block stroke mm 315 315 400 400 315
Number of stroke min-1 20 19 17 16 20
Max die set height mm 500 500 600 600 500
Die set height adjustment mm 200 200 250 250 200
Worktable dimensions
(F・B * L・R * H）		 mm 950*1000*140 1100*1100*160 1200*1240*180 1400*1500*200 1100*1100*140
Dimensions of side block bottom surface （F・B * L・R） mm 850*960 1000*1100 1100*1240 1300*1490 850*960
Stroke of materials to be punched  (rigid) mm 100 100 150 120 100
Distance between Gibs mm 810 990 1200 1340 810
Cushion
(Optional)		 Pressing / Ejection force kN 250/250 300/300 400/400 400/400 250/250
stroke mm 150 150 150 200 150
Number 1 1 1 1 1
Outline dimenstion FB mm 2070 2500 2650 2800 3500
RL mm 2270 3700 3900 4200 4200
Height above floor mm 5800 6200 6800 7000 6050
Total weight T 32 36 62 80 33
Main motor capacity kW 30 37 55 55 30
Direction for the displacement of worktable / / / / /
Description
1-POINT
JD31-400 JD31-500 JD31-630 JD31-800
Nominal force kN 4000 5000 6300 8000
Stroke under nominal force mm 11 13 13 13
Slide block stroke mm 400 400 400 500
Number of stroke min-1 17 12 12 10
Max die set height mm 600 700 700 800
Die set height adjustment mm 250 250 250 315
Worktable dimensions
(F・B * L・R * H）		 mm 1200*1240*180 1400*1500*190 1500*1700*200 1600*1900*210
Dimensions of side block bottom surface （F・B * L・R） mm 1100*1240 1350*1500 1400*1680 1500*1800
Stroke of materials to be punched  (rigid) mm 150 150 150 200
Distance between Gibs mm 1200 1520 1720 1920
Cushion
(Optional)		 Pressing / Ejection force kN 400/400 500/500 500/500 800/800
stroke mm 150 200 200 250
Number 1 1 1 1
Outline dimenstion FB mm 2450 3000 3350 3270
RL mm 3900 3650 3950 4350
Height above floor mm 6800 7100 7650 8300
Total weight T 62 80 90 125
Main motor capacity kW 55 55 75 75
Direction for the displacement of worktable / / / /

Check out the technical data sheet and machine details in our brochure
