Eliminate the Saw. Automate the Fit-Up.
Standard saws and plasma cutters leave burrs, heat-affected zones, and inaccurate angles that destroy your welding fit-up and demand hours of manual grinding. Our dedicated CNC Tube Lasers process round, square, rectangular, and custom structural profiles in a single, highly automated step.
Whether you are fabricating lightweight steel furniture or processing heavy structural profiles, our segmented tube laser portfolio is engineered to maximize material yield, ensure dimensional accuracy, and inject true agility into your production ecosystem.
Structure: High-Speed Rotary | Dedicated Pipe Laser
Power: Up to 3,000W (Max Photonics)
Ideal For: Furniture manufacturers, gym equipment builders, and first-time CNC tube buyers.

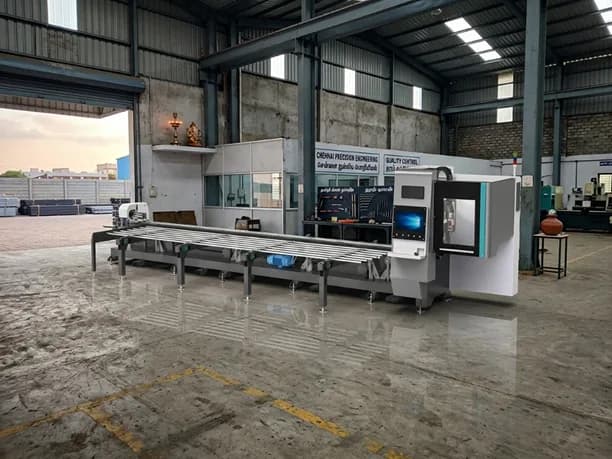

Designed specifically for MSMEs processing light to medium tubes, this machine is the definitive entry point into automated pipe cutting. It accommodates tube diameters ranging from 10mm up to 170mm, with a full 6,000mm processing range.
Achieves a maximum X-axis moving speed of 60m/min and an acceleration of 0.8G. It is capable of immense rotational speeds up to 150 RPM on the U-Axis for high-volume thin-tube production.
Powered by the industry-leading FSCUT3000DE control system and Tube Pro software, allowing operators to easily import designs and optimize cutting paths.
The GPL utilizes advanced BEUT pneumatic chucks that provide full-stroke clamping and automatic precise centering. This specialized chuck geometry aggressively minimizes remaining tail material, ensuring you extract the maximum number of parts from every raw pipe purchased.

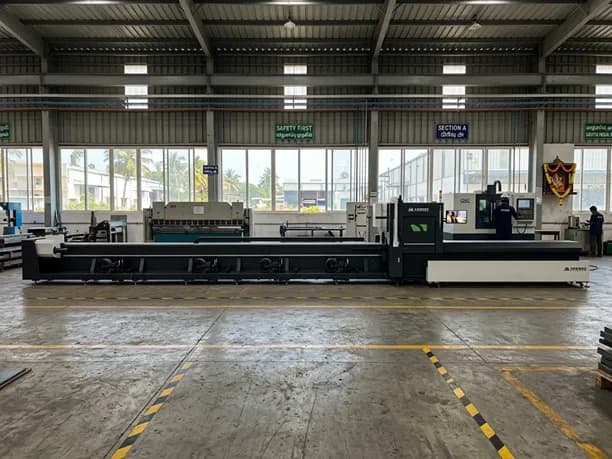

Structure: Gantry Beam Structure | Fully Enclosed Options
Ideal For: High-volume job workers, automotive exhaust systems, and structural steel fabricators.
Engineered for extreme dynamic performance and material optimization. This series utilizes a highly rigid gantry beam structure that achieves a processing acceleration of 1.2G and a rapid feeding speed of 100m/min.
Features an advanced self-centering chuck system with a front card designed to avoid short tail cutting. This ensures a minimum tail material of just 50mm, drastically improving the utilization rate of expensive raw pipes.
To combat localized labor shortages, this series supports highly modular automatic or semi-automatic loading systems. The equipment automatically sorts and feeds the tubes to complete the cutting process without manual intervention.
Perfectly suited for processing rectangular pipes, round pipes, waist round pipes, polygonal pipes, and channel steel.
| Feature | GPL-170mm-6000mm | High-Dynamic Series |
|---|---|---|
| Best For | Furniture, general fabrication, entry-level CNC | High-volume continuous production, automated feeding |
| Max Tube Length | 6,000 mm | Up to 7,500 mm (Depending on model) |
| Max Acceleration | 0.8G | 1.2G |
| Material Yield Edge | Minimum Tailing (BEUT chucks) | 50mm Minimum Tail Material |
| Loading Mechanism | Standard Loading | Semi-Automatic or Fully Automatic Loading |
For urgent technical support or to share component drawings for a production audit, please use our direct digital channels.
