Dual Capability. Single Footprint.

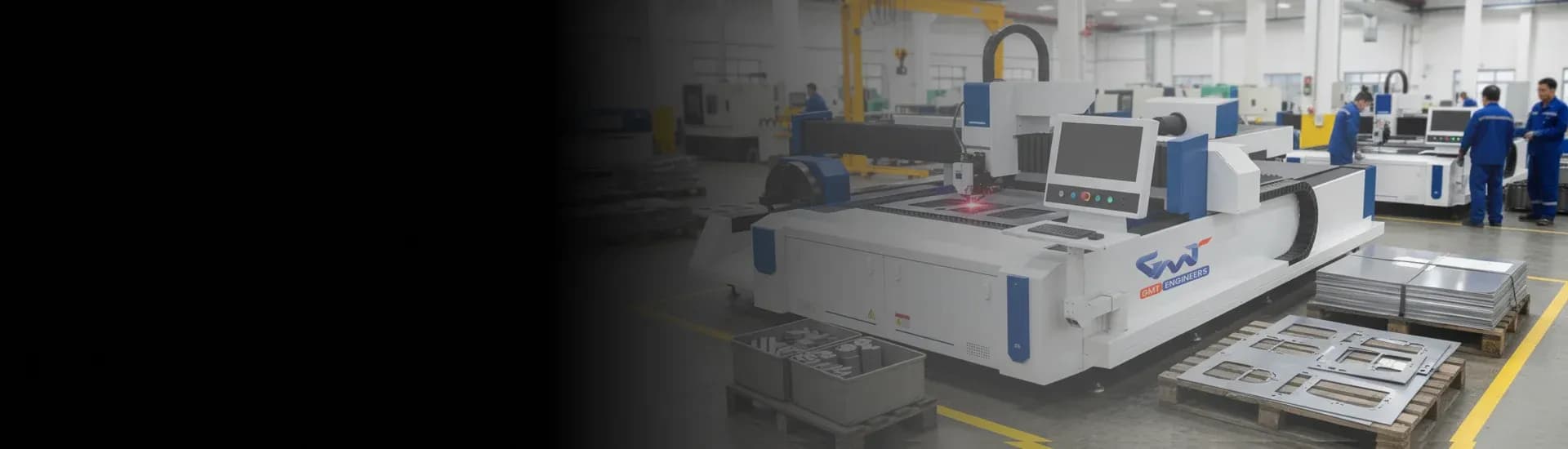

In industrial hubs across South India, factory floor space is a premium asset. Machinery is highly capital-intensive. The GBL3015-T6 Combo Laser solves both challenges simultaneously by integrating a highly precise rotary tube cutting system directly alongside a standard flat-bed laser.
For manufacturers who need diverse cutting capabilities—but lack the floor space or capital for two separate machines—this is the definitive answer. The GBL3015-T6 delivers uncompromised sheet metal processing and structural profile cutting in a single, cost-effective workstation.
While heavy fabrication job shops often require dedicated, separate machines, the GBL3015-T6 is the ultimate ROI engine for businesses producing finished goods that require both flat skins and structural frames.
You save up to 50% on floor space and drastically reduce your capital expenditure by investing in one factory-integrated CNC system instead of two.
By sharing a single, high-output fiber laser source (1.5kW to 6kW) for both sheet and pipe processing, the GBL3015-T6 significantly lowers your total machine power consumption and maintenance overhead.
We believe in matching the right machine to your exact production physics.
The GBL3015-T6 utilizes a single gantry and a shared cutting head. It cannot cut tube and sheet simultaneously. You must finish your flat-bed cutting job, and then use the cutting head to process tubes. If you are a high-volume job worker requiring continuous, simultaneous output on both flat sheets and structural pipes, we strongly recommend exploring our dedicated machines.
Located securely alongside the main bed, the dual pneumatic chuck system automatically centers tubes for precise cutting. Whether processing round pipes, square tubes, or rectangular profiles, the holding grip is secure, self-adjusting, and prevents material whipping.
Switching between plate and pipe modes is seamless. The unified CNC controller runs the industry-standard Cypcut (for sheets) and TubePro (for pipes). This allows your operator to import complex drawings and transition between jobs without requiring complex manual recalibrations.
Just like our dedicated machines, the GBL3015-T6 features a stress-relieved, annealed bed to ensure the additional vibrations from tube rotation never compromise the micron-level accuracy of your flat-bed cutting.
| Component | Specification |
|---|---|
| Laser Power | 1,500W to 6,000W (Max / Raycus / IPG) |
| Sheet Working Area | 3,000 mm x 1,500 mm (Standard) |
| Tube Length Capacity | 6 Meters |
| Tube Diameter Range | 20 mm to 220 mm |
| Supported Profiles | Round, Square, Rectangular, Oval |
| Cutting Head | Raytools / BOCI (Auto-Focus) |
For urgent technical support or to share component drawings for a production audit, please use our direct digital channels.
