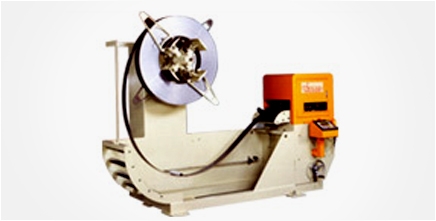

Slitting Line

NCMA Series Feature
  • Stand alone screen type control panel
  • Ø 1200mm Max. Coil outside diameter
  • Material width scales on mandrel pads
  • 4 heavy duty coil keepers
  • Hand crank entrance edge guides
  • 2 rolls catenary support section

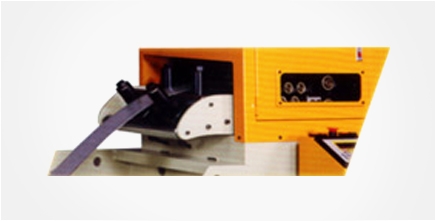

  • Feed and straighten rolls with a hard Chrome finished
  • Heavy duty machine cabinet base
  • Feeding line easily adjusts by advance worm gear screw jack device
  • All the straightening rolls upper / lower in cluster gear drving

NCMA

Series / 200 – 300 – 400


Slitting Line

Model
NCMA – 200
NCMA – 300
NCMA – 400
Coil width (mm)
10 ~ 200
10 ~ 300
10 ~ 400
Coil thickness (mm)
0.15 ~ 2.2
0.15 ~ 2.2
0.15 ~ 2.2
Coil I.D.
Ø 508
Ø 508
Ø 508
Coil I.D.
Ø 1200
Ø 1200
Ø 1200
Coil Weight (kgs)
1000
1000
1000
Straightening roller (pcs)
Upper 3 Lower 4
Upper 3 Lower 4
Upper 3 Lower 4
Feed roller (pcs)
2
2
2
Feed speed (m/min)
16
16
16
Drive servo motor (kw)
AC 3.5
AC 3.5
AC 3.5
Uncoil motor (kw)
AC 0.75
AC 0.75
AC 0.75
Mandrel expansion
Manual Operation
Air Pressure (kg/cm2)
5
5
5
Dimensions (L x W x H) (mm)
2740 * 1320 * 2250
2740 * 1426 * 2250
2740 * 1520 * 2250
Machine weight (kgs)
1000
1200
1500

Feeding Straightening Performance

Model
NCMA – 200
 NCMA – 300
NCMA – 400
Coil thickness (mm)
Coil width (mm)
Coil width (mm)
Coil width (mm)
0.3 ~ 1.0
200
300
400
1.2
170
170
170
1.4
140
140
140
1.6
120
120
120
1.8
100
100
100
2.2
90
90
90

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.

NC Servo feeder, Straightener & Uncoiler 3 in 1 NCMF Series

NCMF Series Feature
  • Motorized coil reel for payoff
  • Heavy duty backplate construction
  • Ø 1200mm Max. Coil outside diameter
  • Hydraulic mandrel expansion feature
  • Fail safe disc brake for clockspring control
  • Material width scales on mandrel pads
  • 4 heavy duty coil keepers
  • Air operated coil hold down arm
  • Endwheel for clockspring control
  • Variable speed pay-off operations
  • Hand crank entrance edge guides
  • 3 roll catenary support section
  • Heavy duty machine cabinet base
  • Precision super gear drive train
  • Permanently lubed and sealed bearings
  • Pivoting type Straightener Head
  • Feed width upper and lower feed rolls
NCMF

Series / 300 – 400 – 500 – 600

Specifications

Model
NCMF – 300
NCMF – 400
NCMF – 500
NCMF – 600
Coil width (mm)
30 ~ 300
30 ~ 400
30 ~ 500
30 ~ 600
Coil thickness (mm)
0.3 ~ 3.2
0.3 ~ 3.2
0.3 ~ 3.2
0.3 ~ 3.2
Coil I.D.
Ø 508
Ø 508
Ø 508
Ø 508
Coil I.D.
Ø 1200
Ø 1200
Ø 1200
Ø 1200
Coil weight (kgs)
3000
3000
3000
3000
Straightening roller (pcs)
Upper 5 Lower 5
Upper 5 Lower 5
Upper 5 Lower 5
Upper 5 Lower 5
Feed roller (pcs)
2
2
2
2
Feed speed (m/min)
16
16
16
16
Drive servo motor (kw)
AC 3.0
AC 3.0
AC 3.0
AC 5.0
Uncoil motor (kw)
AC 0.75
AC 0.75
AC 1.5
AC 0.1.5
Mandrel expansion
Hydraulic Operation
Air Pressure (kg/cm2)
5
5
5
5
Dimensions (L x W x H) (mm)
3840 * 2236 * 2245
3840 * 2336 * 2245
3840 * 2436 * 2245
3840 * 2536 * 2245
Machine weight (kgs)
2100
2700
3400
4100

Feeding Straightening Performance

Model
NCMF – 300
NCMF – 400
NCMF – 500
 NCMF – 600
Coil thickness (mm)
Coil width (mm)
Coil width (mm)
Coil width (mm)
Coil width (mm)
0.3 ~ 1.8
300
400
500
600
2.0
300
310
310
310
2.3
230
230
230
230
2.8
160
160
160
160
3.2
135
135
135
135

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.

NC Servo feeder, Straightener & Uncoiler 3 in 1 NCDF Series

NCDF SERIES FEATURE
Feeder-Straightener Features:
  • 3 rolls catenary support section
  • 9 straightener rolls – 5 over 4
  • Full width upper and lower feed rolls
  • Feed and straighten rolls with hard chrome finished
  • Pivoting type feeder-straightener head for piloting operations
Coil Real Features:
  • Variable speed pay-off operations
  • Single end real configuration
  • Heavy duty backplate construction
  • Ø 1200mm Max. Coil outside diameter
  • Hydraulic mandrel expansion feature
  • 4 heavy duty coil keepers
  • Air operated coil hold down arm
  • Motorized end wheel for coil threading
  • Electric eye type loop control
  • Variable speed drive
NCMF

Series / 300 – 400 – 500 – 600 – 800 – 1000 – 1300

Specifications

Model
NCDF – 300
NCDF – 400
NCDF – 500
NCDF – 600
NCDF – 800
NCDF – 1000
NCDF – 1300
Coil width (mm)
50 ~ 300
50 ~ 400
50 ~ 500
50 ~ 600
70 ~ 800
100 ~ 1000
100 ~ 1300
Coil thickness (mm)
0.3 ~ 4.5
0.3 ~ 4.5
0.3 ~ 4.5
0.3 ~ 4.5
0.3 ~ 4.5
0.3 ~ 4.5
0.3 ~ 4.5
Coil I.D.
Ø 508
Ø 508
Ø 508
Ø 508
Ø508
Ø 508
Ø 508
Coil O.D
Ø 1200
Ø 1200
Ø 1200
Ø 1200
Ø 1200
Ø 1200
Ø 1200
Coil weight (kgs)
3000
3000
3000
3000
3000
3000
3000
Pinch roller (pcs)
2
2
2
2
2
2
2
Straightening roller (pcs)
Upper 5 Lower 4
Upper 5 Lower 4
Upper 5 Lower 4
Upper 5 Lower 4
Upper 5 Lower 4
Upper 5 Lower 4
Upper 5 Lower 4
Feed roller (pcs)
2
2
2
2
2
2
2
Feed speed (m/min)
18
18
18
18
18
18
18
Drive servo motor (kw)
AC Servo 3.5
AC Servo 3.5
AC Servo 5.0
AC Servo 5.0
AC 5.0
AC 5.0
AC 7.0
Uncoil motor (kw)
AC 1.5
AC 1.5
AC1.5
AC 1.5
AC 2.2
AC 2.2
AC 3.5
Mandrel expansion
Hydraulic Operation
Air Pressure (kg/cm2)
5
5
5
5
5
5
5
Dimensions (L x W x H) (mm)
4150 * 2230 * 2510
4150 * 2330 * 2510
4150 * 2430 * 2510
4150 * 2530 * 2510
4150 * 2730 * 2510
4150 * 2930 * 2510
4150 * 3230 * 2510
Machine weight (kgs)
3500
4100
4700
5300
8500
10500
12500

Feeding Straightening Performance

Model
NCDF – 300
NCDF – 400
NCDF – 500
NCDF – 600
Coil thickness (mm)
Coil width (mm)
Coil width (mm)
Coil width (mm)
Coil width (mm)
0.3 ~ 2.5
300
400
500
600
3.2
300
330
320
290
4.0
270
270
270
250
4.5
200
200
200
200
Model
NCDF – 800
NCDF – 1000
NCDF – 1300
Coil thickness (mm)
Coil width (mm)
Coil width (mm)
Coil width (mm)
0.3 ~ 1.8
800
1000
1300
2.5
320
290
240
3.2
260
240
220
4.0
220
210
200
4.5
180
150
120

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.

NC Servo feeder, Straightener & Uncoiler 3 in 1 SNR 6 / 8 Series

SNR 6 / SNR 8 SERIES FEATURE
  • AC servo drive-digital control
  • Centralized controls for reel and feeder
  • Powered debender threading assembly
  • Dual rools entrance edge guides by motorized
  • 3 roll catenary support section with full side plates
  • Heavy duty cabinet base with + -100 mm of height adjustment
  • Pivoting type feeder-straightener head for piloting operations
  • 8 straightening rolls for optimum straightening capability
  • Full width upper and lower feed rolls
  • Upper straightener roll height scales and pointers
  • Optimized roll diameter and center distance
  • Remote jog pendant for material threading
  • 6″ LCD screen touch panel for set up
COIL REAL FEATURES:
  • Jog pendant for coil loading and threading
  • Ac varible speed drive-digital control
  • Single end reel configuration
  • Heavy duty back plate
  • Ø 1500mm Max. Coil outside diameter
  • Ø 508mm max. Coil inside diameter
  • Ø 480mm ~ Ø 520mm Mandrel expansion range
  • Hydraulic mandrel expansion feature
  • Coil hold down arm and support arm operated by hydraulic motorized
  • Upper dual coil guide assembly adjustment by hydraulic cylinder
  • Lower dual coil guide assembly adjustment by hydraulic cylinder
  • Loop control system with photo eyes.
NCMF

Series / 300 – 400 – 500 – 600 – 800 – 1000 – 1300

Specifications

Model
SNR6 – 400
SNR6 – 500 –
SNR6 – 600
SNR6 – 800
SNR6 – 1000
SNR6 – 1300
SNR6 – 1600
Coil width (mm)
70 ~ 400
70 ~ 500
70 ~ 600
70 ~ 800
70 ~ 1000
70 ~ 1300
70 ~ 1600
Coil thickness (mm)
0.6 ~ 6.0
0.6 ~ 6.0
0.6 ~ 6.0
0.6 ~ 6.0
0.6 ~ 6.0
0.6 ~ 6.0
0.6 ~ 6.0
Coil I.D.
Ø 508
Ø 508
Ø 508
Ø 508
Ø 508
Ø 508
Ø 508
Coil I.D.
Ø 1500
Ø 1500
Ø 1500
Ø 1500
Ø 1500
Ø 1500
Ø 1500
Coil weight (kgs)
5000
5000
5000
5000
5000
5000
5000
Pinch roller (pcs)
2
2
2
2
2
2
2
Straightening roller (pcs)
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Feed roller (pcs)
2
2
2
2
2
2
2
Feed speed (m/min)
20
20
20
20
20
20
20
Drive servo motor (kw)
AC 7.0
AC 7.0
AC 7.0
AC 10.0
AC 10.0
AC 15.0
AC 15.0
Uncoil motor (kw)
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Mandrel expansion
Hydraulic Operation
Air Pressure (kg/cm2)
5
5
5
5
5
5
5
Dimensions (L x W x H) (mm)
5300 * 2650 * 2800
5300 * 2750 * 2800
5300 * 2850 * 2800
5300 * 3050 * 2800
5300 * 3250 * 2800
5300 * 3550 * 2800
5300 * 3850 * 2800
Machine weight (kgs)
10,300
10,600
10,850
12,400
13,000
14,100
14,900

Specifications

Model SNR8 – 400
SNR8 – 500 –
SNR8 – 600
SNR8 – 800
SNR8 – 1000
SNR8 – 1300
SNR8 – 1600
Coil width (mm)
100 ~ 400
100 ~ 500
100 ~ 600
100 ~ 800
100 ~ 1000
100 ~ 1300
100 ~ 1600
Coil thickness (mm)
0.8 ~ 8.0
0.8 ~ 8.0
0.8 ~ 8.0
0.8 ~ 8.0
0.8 ~ 8.0
0.8 ~ 8.0
0.8 ~ 8.0
Coil I.D
Ø508
Ø508
Ø508
Ø508
Ø508
Ø508
Ø508
Coil I.D
Ø1500
Ø1500
Ø1500
Ø1500
Ø1500
Ø1500
Ø1500
Coil Weight (kgs)
5000
5000
5000
7000
7000
7000
7000
Pinch roller (pcs)
2
2
2
2
2
2
2
Straightening roller (pcs)
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Upper 4 Lower 4
Feed roller (pcs)
2
2
2
2
2
2
2
Feed speed (m/min)
18
18
18
18
18
18
18
Drive servo motor (kw)
AC 10.0
AC 10.0
AC 10.0
AC 15.0
AC 15.0
AC 22.0
AC 22.0
Uncoil motor (kw)
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Hydraulic motor
Mandrel expension
Hydraulic Operation
Air Pressure (kg/cm2)
5
5
5
5
5
5
5
Dimensions (L x W x H) (mm)
5300 * 2650 * 2800
5300 * 2750 * 2800
5300 * 2850 * 2800
5300 * 3050 * 2800
5300 * 3250 * 2800
5300 * 3550 * 2800
5300 * 3850 * 2800
Machine weight (kgs)
10,300
10,600
10,850
12,400
13,000
14,100
14,900

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.
