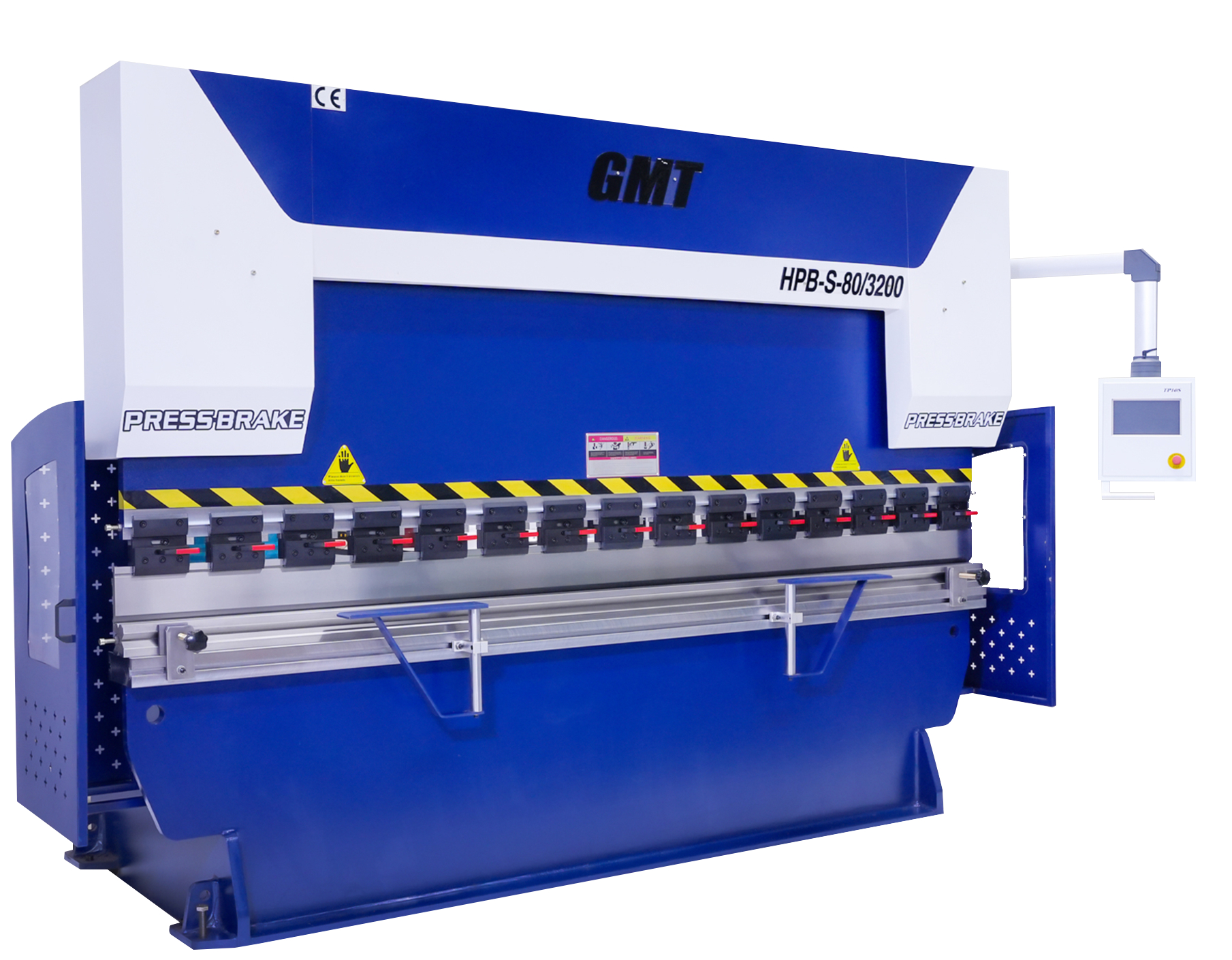

HPB: 2-Axis Servo Controlled Hydraulic Press Brake

Features

  • HPB-S is an accurate Press Brake with Servo Controlled X & Y Axis.
  • Optional Hand operated or Motorised Crowning can enhance the bending accuracy.
  • The Tetralec controller gives the performance of any international controller of its class.
  • Convenient Front Arm Support System and backguage fitted with Four Fingers placed on Linear Guides with up and down facility provided to enhance operator performance.
  • Imported German Hydraulics for Trouble Free running.
  • Electrical Panel with Standard elements such as Schneider or Telemechanic.

Specifications

Model
Nominal Pressure
(KN)
Length of Table
(mm)
Distance between columns
(mm)
Throat Depth
(mm)
Stroke
(mm)
Stroke Adjustment
(mm)
Open Height
(mm)
Strokes
(min-1)
Main Motor
(kw)
Weight
(kg)
Overall Dimension
(L*W*H in mm)
HPB-S-30X1250
300
1250
900
200
80
60
280
≥15
4
1100
1450*1350*1800
HPB-S-30X1500
300
1500
1000
200
80
60
280
≥15
4
1300
1700*1350*1800
HPB-S-30X1600
300
1600
1050
200
80
60
280
≥15
4
1500
1800*1350*1800
HPB-S-30X2000
300
2000
1400
200
80
60
280
≥15
4
1700
2300*1350*1800
HPB-S-40X1250
400
1250
900
230
100
80
320
≥11
5.5
1800
1450*1350*1910
HPB-S-40X1500
400
1500
1050
230
100
80
320
≥11
5.5
2100
1700*1350*1910
HPB-S-40X2000
400
2000
1400
230
100
80
320
≥11
5.5
2600
2200*1350*1910
HPB-S-40X2200
400
2200
1850
230
100
80
320
≥11
5.5
2700
2400*1200*1910
HPB-S-40X2500
400
2500
2000
230
100
80
320
≥11
5.5
3000
2700*1200*1910
HPB-S-40X3200
400
3200
2600
230
100
80
320
≥11
5.5
4000
3500*1200*1910
HPB-S-63X1250
630
1250
900
250
100
80
320
≥10
5.5
2000
1600*1500*2200
HPB-S-63X1500
630
1500
1050
250
100
80
320
≥10
5.5
2500
1800*1500*2200
HPB-S-63X2000
630
2000
1400
250
100
80
320
≥10
5.5
3200
2250*1500*2200
HPB-S-63X2500
630
2500
2000
250
100
80
320
≥10
5.5
4000
2700*1300*2200
HPB-S-63X3200
630
3200
2600
250
100
80
320
≥10
5.5
4800
3500*1300*2200
HPB-S-80X2500
800
2500
2000
300
100
80
350
≥10
7.5
4700
2700*1400*2300
HPB-S-80X3200
800
3200
2600
320
100
80
350
≥8
7.5
5300
3500*1500*2300
HPB-S-80X4000
800
4000
3100
320
100
80
350
≥8
7.5
6200
4200*1500*2300
HPB-S-100X2500
1000
2500
2000
320
120
100
380
≥8
7.5
5300
2700*1600*2400
HPB-S-100X3200
1000
3200
2600
320
120
100
380
≥8
7.5
5800
3500*1600*2450
HPB-S-100X4000
1000
4000
3100
320
120
100
380
≥8
7.5
6800
4300*1600*2450
HPB-S-125X3200
1250
3200
2600
320
120
100
380
≥8
7.5
6500
3400*1600*2450
HPB-S-125X4200
1250
4200
3100
320
120
100
380
≥8
7.5
7500
4300*1600*2450
HPB-S-160X3200
1600
3200
2600
320
200
150
460
≥6
11
9600
3500*1700*2700
HPB-S-160X4000
1600
4000
3100
320
200
150
460
≥6
11
11000
4300*1700*2800
HPB-S-160X5000
1600
5000
3900
320
200
150
460
≥6
11
15000
5500*1800*3000
HPB-S-160X6000
1600
6000
4800
320
200
150
460
≥6
11
18500
6500*1900*3200
HPB-S-200X3200
2000
3200
2600
350
200
150
460
≥3
15
11300
3500*1900*2800
HPB-S-200X4000
2000
4000
3200
350
200
150
460
≥3
15
13000
4500*1950*2800
HPB-S-200X5000
2000
5000
3900
350
200
150
460
≥3
15
14500
5500*1950*3000
HPB-S-200X6000
2000
6000
4800
350
200
150
460
≥3
15
21000
6500*1950*3300
HPB-S-250X3200
2500
3200
2600
400
250
180
500
≥3
18.5
13700
3500*2000*3200
HPB-S-250X4000
2500
4000
3100
400
250
180
500
≥3
18.5
15000
4500*2000*3400
HPB-S-250X5000
2500
5000
3900
400
250
180
500
≥3
18.5
17000
5500*2000*3400
HPB-S-250X6000
2500
6000
4800
400
250
180
500
≥3
18.5
18500
6500*2000*3400
HPB-S-300X4000
3000
4000
3100
400
250
180
530
≥3
22
21000
4500*2000*3450
HPB-S-300X5000
3000
5000
4000
400
250
180
530
≥3
22
22000
5500*2000*3450
HPB-S-300X6000
3000
6000
4800
400
250
180
530
≥3
22
24000
6500*2000*3550
HPB-S-400X4000
4000
6000
3100
400
250
180
600
≥2.5
30
28000
4500*2180*3400
HPB-S-400X5000
4000
5000
3900
400
250
180
600
≥2.5
30
30000
5500*2180*3900
HPB-S-400X6000
4000
6000
4800
400
250
180
600
≥2.5
30
34000
6500*2180*3900
HPB-S-500X4000
5000
4000
3100
400
320
220
630
≥2.5
37
42000
4500*2700*3500
HPB-S-500X5000
5000
5000
3900
400
320
220
630
≥2.5
37
45000
5500*2700*3700
HPB-S-500X6000
5000
6000
4800
400
320
220
630
≥2.5
37
47500
6500*2700*5000

Check out the technical data sheet and machine details in our brochure
