BEF Plate Drilling Machines

Features

The advanced technical solution for flange drilling in the steel construction sector is again from BENDMAK… High speed, high machining efficiency and high quality in materials up to 1000 × 1500 mm with BEF…

BEF FLANGE The drilling machine was developed with the experience of BENDMAK in half a century. The latest technology was used for drilling, tapping and scraping on plates. All working movements are performed with CNC (Computer Numerical Control) system.

The main body is made of welded steel construction. After stress relief heat treatment was applied to all parts, machining was made.

Category:

BEF CNC FLANGE Drilling can process plates with thicknesses from 6 to 80 mm within the working area dimensions. The material to be processed is moved on the ball processing table by means of hydraulic clamping jaws. With CNC programming, the part positioned in the machining coordinates is fixed with hydraulic piston and hardened claw jaws and the drilling process is performed correctly. The BEF Flange Drilling Machine is capable of drilling, tapping, scraping, simple milling and hydraulic pressure reeling (ops).

Specifications

Control panel
Mitsubishi M70 V
Mitsubishi M70 V
Drilling unit
Vertical
1 Unit
1 Unit
Speed Range
10-3000 (RPM)
10-3000 (RPM)
Tool Conical
BT 40
BT 40
Moto Power
22 KB-T / kW / 140Nm
22 KB-T / kW / 140Nm
Spindle Torque
280 Nm
280 Nm
Working Capacity
Plate Dimensions Min. (mm)
100*100*6
200*200*6
Plate Dimensions Max. (mms)
Dimensions are given according to maximum material weight that can be positioned.
1000*1500*64
1000*1190*80
795*1500*80
700*1250*40
Plate Thickness minimax. (mm)
6/80
6/80
Maximum material weight that can be positioned
750 kg.
500 kg
Max.Drilling Capacity (mm)
40
40
Tapping min./max
M10/M24
M10/M24
Axis X Speed
20.000 mm/min
20.000 mm/min
Axis Y Speed
20.000 mm/min
20.000 mm/min
Axis Z Speed
15.000 mm/min
15.000 mm/min
Other Features
Automatic Tool Changing (ATC)
16 / Units
16 / Units
Machine Weight
~7250 Kr./~7250 kg .
~6500 Kr. /~ 6500 kg.

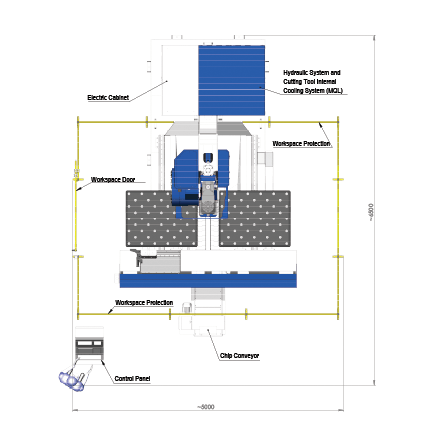

Area Covered by the Machine (mm)
-6500*5500*2550
15.000 mm/min

Check out the technical data sheet and machine details in our brochure
