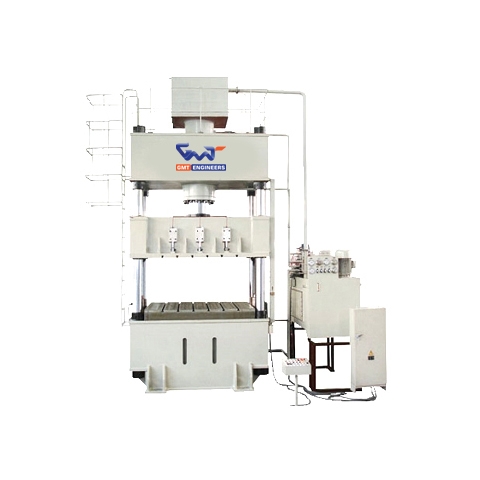

Four – Column Single – Movement Hydraulic Press For Sheet Metal Drawing (Stamping)

Features

  • Computer optimized structure design; four-column structure: simple, economic and practical.
  • Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points, Hydraulic integrated system is adopted separate control unit.
  • Independent electrical control, reliable, audio-visual and convenient for maintenance.
  • Centralized button control system, with adjustment, hand and semi-auto operation modes at operator’s choice(semi-automatic has two type tech: set-stroke single and set-pressure single).
  • The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.
Category:

Specifications

Description YL27-100 YL27-160 YL27-200 YL27-250 YL27-315
Rated force kN 1000 1600 2000 2500 3150
Return force kN 160 210 240 400 600
Ram Stroke mm 510 560 710 710 800
Max.daylight mm 800 900 1120 1120 1250
Cushion force kN 400 630 630 1000 1250
Cushion return force kN 147 250 250 320 360
Cushion stroke mm 200 200 250 250 300
Ram speed Idle stroke mm/s 100 110 150 130 100
Pressing mm/s 7-15 4-10 5-12 7-15 5-12
Return mm/s 85 65 95 90 60
Cushion speed Knock out mm/s 35 25 38 40 30
Return mm/s 100 65 95 110 100
Table size L-R mm 690 800 1000 1100 1260
F-B mm 630 800 940 1000 1160
Cushion area L-R mm 350 500 670 670 820
F-B mm 350 500 670 670 820
Outline dimensions L-R mm 2500 2890 3100 3250 3100
F-B mm 1150 1250 1350 1350 2100
Height above floor mm 3400 3700 4000 4200 4800
Main motor capacity kW 7.5 11 15 22 22
Weight of the press machine kg 5500 8200 11000 14000 18000
Description YL27-400 YL27-400a YL27-500 YL27-500a YL27-630
Rated force kN 4000 4000 5000 2500 6300
2
Return force kN 500 500 900 400 850
2
Ram Stroke mm 800 800 900 900 900
Max.daylight mm 1250 1250 1500 1500 1500
Cushion force kN 1250 1250 2000 2000 1250
2
Cushion return force kN 360 360 780 780 360
2
Cushion stroke mm 300 300 350 350 350
Ram speed Idle stroke mm/s 130 130 120 150 130
Pressing mm/s 4-10 4-10 7-15 7-15 5-12
Return mm/s 70 70 80 90 85
Cushion speed Knock out mm/s 30 30 37 37 30
Return mm/s 100 100 95 95 105
Table size L-R mm 1250 1750 1400 2200 1600
F-B mm 1250 1250 1400 1600 1600
Cushion area L-R mm 820 1270 970 1720 1120
F-B mm 820 820 970 1120 1120
Outline dimensions L-R mm 3150 3700 5800 6600 4150
F-B mm 2300 2300 2600 2600 2600
Height above floor mm 5100 5250 5350 5550 5600
Main motor capacity kW 22 22 2 2 2
22 22 22
Weight of the press machine kg 22000 28000 33000 44000 42000
Description YL27-630a YL27-800 YL27-800a YL27-1000 YL27-1250 YL27-1500 YL27-2000
Rated force kN 3150 8000 4000 10000 6300 5000 6300
2 2 2 3 2+8000
Return force kN 600 1000 500 1350 850 900 850
2 2 2 3 2+720
Ram Stroke mm 900 1000 1200 1000 1300 1500 1600
Max.daylight mm 1500 1800 1800 1800 1800 2000 2000
Cushion force kN 1250 1600 1600 2000 2000 1250 1600
2 2 2 2 2 4 4
Cushion return force kN 360 600 600 580 580 360 600
2 2 2 2 2 4 4
Cushion stroke mm 350 400 400 400 400 500 500
Ram speed Idle stroke mm/s 140 150 150 130 150 120 130
Pressing mm/s 5-12 5-12 5-12 5-12 5-12 5-12 4-10
Return mm/s 85 95 95 85 85 70 75
Cushion speed Knock out mm/s 30 30 30 30 37 37 28
Return mm/s 105 85 80 105 125 125 75
Table size L-R mm 2500 2200 3500 2500 3500 4000 4600
F-B mm 1800 1600 2000 1800 2000 2600 2600
Cushion area L-R mm 2020 1570 2920 2020 2920 3220 3820
F-B mm 1270 1120 1420 1270 1420 2020 2020
Outline dimensions L-R mm 5100 5200 6500 6500 5200 5800 6500
F-B mm 2600 2800 2800 3000 3200 3500 3600
Height above floor mm 6200 6400 7000 6800 7300 8000 8600
Main motor capacity kW 2 2 2 3 3 3 3
22 30 30 22 30 37 37
Weight of the press machine kg 70000 75000 105000 95000 140000 175000 270000
