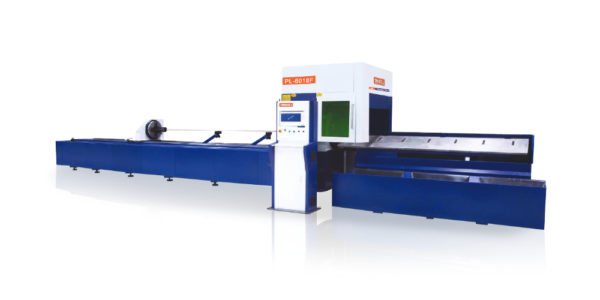

YANGLI PL series CNC Pipe Cutting Machine

Features

  • Diameter Minimum Ø20 & Maximum Ø180
  • Tube Length : Minimum – 3000mm, Maximum – 6200mm
  • Round, Square, Oval tubes can be processed
  • Angle Channels can be processed
  • With Tube Feeding attachment as optional
Category:

Specifications

Description
Unit
PL6018F
PL6018HFA
Tube Processing Area
mm
6200 x Ø 20-180
6200 x Ø 20-180
Loading Length
mm
3000-6200
3000-6200
Unloading Length
mm
0-3000
0-4000
X Axis Stroke
mm
6750
6750
Y Axis Stroke
mm
200
200
Z Axis Stroke
mm
160
160
W Axis
Infinite Rotation
Infinite Rotation
X,Y Axis positioning accuracy
mm/m
±0.02
±0.02
X,Y Axis Re-positioning accuracy
mm
±0.05
±0.03
Acceleration
g
0.9
1.2
X,Y Axis Max.Feeding Speed
m/min
90
120
W Axis Rotation Speed
r/min
100
120
Tube Loading
Manual
Auto
Laser Power
W
500/700/1000/1500/2000/3000
500/700/1000/1500/2000/3000
Dimension(L*W*H)
m
12*2*3
13.5*4.5*3

Check out the technical data sheet and machine details in our brochure
