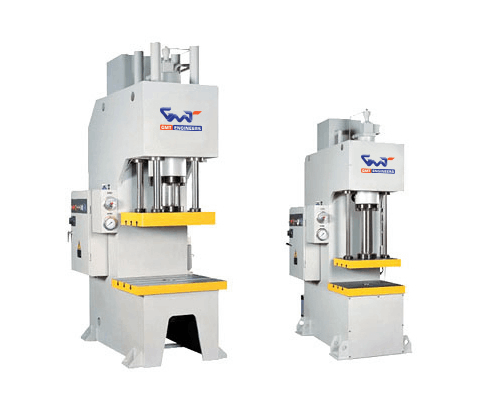

Single – Column Hydraulic Straightening And Mounting Press

It adopt intelligent structure, Ctype single arm frame structure, has the feature such as good reliable, simple structure and easy operation.
The frame is entirely welded with steel plates and treated to relive stress by tempering.
Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points.
Hydraulic system adopt pressure pre-release device, low impact of hydraulic pressure.
Independent electrical control, reliable, audio-visual and convenient for maintenance.
Centralized button control system, with adjustment, hand and semi-auto operation modes at operator’s choice (semi-automatic has two type tech: set-stroke single and set-presser single).
The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.

Description				YL41-40	YL41-63	YL41-80	YL41-100	YL41-100a	YL41-160
Rated force			kN	400	630	800	1000	1000	1600
Return force			kN	80	69	149	165	165	210
Liquid Pressure			mm	25	25	25	25	25	25
Ram stroke			mm	400	500	500	500	500	560
Throat depth			kN	280	320	320	380	500	400
Daylight	Straigthening		mm	600	700	700	700	750	900
	Press-in		mm	800	1000	1000	1000	1100	1120
	Idle- stroke		mm/s	110	130	70	75	75	75
Ram Speed	Pressing		mm/s	9-22	6-14	8-18	7-15	7-15	7-15
Ram Speed	Return		mm/s	110	125	100	90	90	110
Table Size	L-R	Straightening	mm	1100	1200	1200	1400	2000	1600
	L-R	Press-in	mm	620	720	720	850	1000	1000
	F-B		mm	520	600	600	720	800	720
Slide block size	L-R		mm	560	620	700	700	700	700
Slide block size	F-B		mm	420	460	500	500	500	500
Table height above floor			mm	720	750	780	820	820	600
Dimension of part dropping hole			mm	φ120	φ150	φ180	φ200	φ200	/
Overall dimensions	L-R	Straightening	mm	1250	1280	1350	1400	2000	1600
	L-R	Press-in	mm	1250	1280	1350	1400	1400	1600
	F-B		mm	1300	1450	1550	1900	2250	2300
	Height above floor	Straightening	mm	2600	2750	2860	2920	3020	3200
	Height above floor	Press-in	mm	2800	3050	3160	3220	3370	3350
	Height below ground level		mm	/	/	/	/	/	/
Motor Power			KW	5.5	5.5	7.5	7.5	7.5	15
Weight of machine	Straightening		Kg	2800	4200	5300	6400	7400	11000
Weight of machine	press-in		Kg	3000	4500	5500	6800	7800	12000

Description				YL41-200	YL41-315a	YL41-315	YL41-400	YL41-500
Rated force			kN	2000	3150	3150	4000	5000
Return force			kN	240	600	600	500	900
Liquid Pressure			mm	25	25	25	25	25
Ram stroke			mm	710	800	800	800	900
Throat depth			kN	500	800	1250	1250	1500
Daylight	Straigthening		mm	1120	1250	1250	1250	1500
	Press-in		mm	1500	1600	1600	1700	1900
	Idle- stroke		mm/s	80	80	80	90	80
Ram Speed	Pressing		mm/s	5-12	7-15	7-15	5-12	7-15
Ram Speed	Return		mm/s	100	75	75	88	80
Table Size	L-R	Straightening	mm	1600	1800	2000	2200	2500
	L-R	Press-in	mm	1200	1250	1400	1600	1800
	F-B		mm	800	1000	1200	1300	1400
Slide block size	L-R		mm	750	1250	1100	1150	1200
Slide block size	F-B		mm	600	800	800	900	1000
Table height above floorReturn			mm	600	400	400	400	400
Dimension of part dropping holeReturn			mm	/	/	/	/	/
Overall dimensionsTable size	L-R	Straightening	mm	1600	1800	2000	2200	2500
	L-R	Press-in	mm	1400	1450	1500	1700	1800
	F-B		mm	3600	3600	3800	3900	4600
	Height above floor	Straightening	mm	3400	4600	4700	4700	5100
	Height above floor	Press-in	mm	3800	4800	4900	5000	5300
	Height below ground levle		mm	/	1200	1350	1400	1600
Motor Power			KW	15	30	30	30	22*2
Weight of machine	Straightening		Kg	16800	26000	33000	42000	51000
Weight of machine	press-in		Kg	18500	28000	36000	46000	56000
