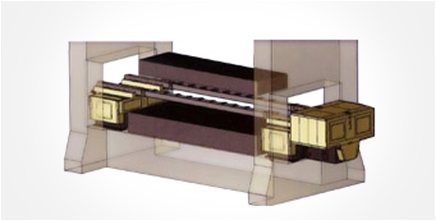

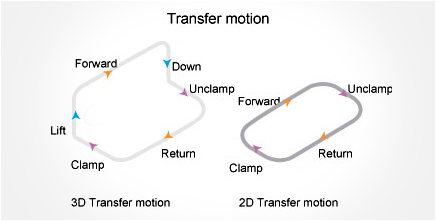

Features

  • Each operation parameter is entered into the controller by touch screen (man-machine interface). It is easy to adjustment for operators.
  • To protect tooling and machine, the misfeed detecting circuit is as a standard accessory.
  • The position of interrogation between mechanical press and transfer unit is done by rotary encoder which connects to the crankshaft of press. All the transfer
    axes are driven by servo motor and run synchronously with press.

Specifications

Transfer Unit
Specifications
(Special Spec. is acceptable)
Type
H3D – 1564
H3D – 25105
H3D – 35156
Pitch
mm
0 ~ 150
0 ~ 250
0 ~ 350
Gripper stroke per side
mm
0 ~ 60
0 ~ 100
0 ~ 150
Lift stroke
mm
0 ~ 40
0 ~ 50
0 ~ 60
Max. speed
spm
40
30
25
Weight
kgf
15
40
40

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.

Features
  • The horizontal and fluctuate motion are driven by AC servo motor with high carrying ‘high accuracy’ high efficiency’ high speed and saving energy.
  • The mechanical motion is monitored by computer with synchronic calculation which is prevented interfere to transfer robot as safety consideration.
  • The Loading/Unloading System suits with medium and large scaled metal of sheet stamping components, such as computer, TFT/LCD monitor, electronic products, automobile etc.
  • Based on the space of workshop and stamping direction, the press line could be turned to 90 o direction to form a “L” type arrangement.
  • Without the feed bar in the die space at lint stop condition, the maintenance of die changing becomes much easier.
  • With LCD Man-Machine-Interface(HMI) in the control panel embedded, monitoring the running status is easy operation.

Specifications

Robot System
Specifications
(Special Spec. is acceptable)
Type
HRY – 80
HRY – 100
HRY – 120
HRY – 150
HRY – 250
HRY – 350
Pitch
mm
760 ~ 800
801 ~ 1000
1001 ~ 1200
1201 ~ 1500
~ 2500
~ 3500
Lift / Lower Stroke
mm
50 ~ 80
50 ~ 80
50 ~ 80
50 ~ 80
50 ~ 80
50 ~ 80
Cycle time
sec
1.6 ~ 2.1
1.7 ~ 2.2
2.0 ~ 2.5
2.7 ~ 3.2
~ 3.5
~ 5. 0
Weight
kgf
2×2
2×2
4×2
4×2
8×2
16×2
Clamp type
Vacuum / Electric Magnet / Clamp
Accuracy
mm
± 0.2
± 2.0
± 3.0
± 3.0
± 3.0
± 3.0

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.

Features
  • Driven by AC servo motor makes the motion more smooth high efficiency high speed saving energy and vertical axes designed by special linkage.
  • The Loading/Unloading system suits with medium and large scaled metal of sheet stamping components, such as computer, TFT/LCD monitor, electronic products , automobile etc.
  • The linkage system is variable combination with multi-presses and be able to load and unload blanks independently as well.

Suitable for processing the quenching parts of large workerless scan as computer shells, electric boxes, OA furniture.

Specifications

Robot System
Specifications
(Special Spec. is acceptable)
Type
HRY -120
HRY – 140
HRY – 160
HRY – 190
 HRY – 200
Pitch
mm
1200
1400
1600
1900
2000
Lift – Lower stroke
mm
90 ~ 120
90 ~ 120
100 ~ 130
110 ~ 140
110 ~ 140
AC Servo Motor
kw
1.5
1.5
3
3.7
3.7
Cycle time
sec
2.0
2.5
3.0
3.5
3.5
Weight
kgf
~ 10
~ 10
~ 15
~ 20
~ 20
Clamp type
Vacuum / Electronic Magnet / Clamp
Accuracy
mm
±1.5

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.

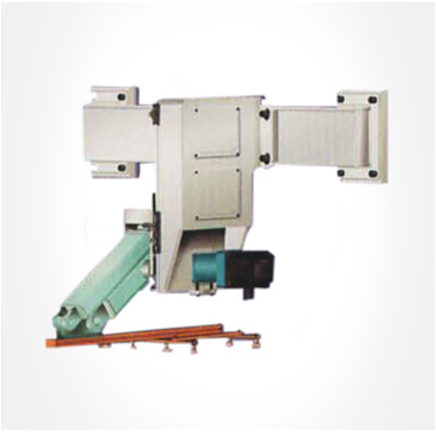

Transfer Robot for Multi – stage Presses
  • The driving is controlled by servo motor.
  • Fast feed. Smooth movement and high precision positioning.
  • Save labor & movement time, increase working efficiency.
  • Mechanical action can secure stable stable quality, reduce faulty rate and features with high safety.
  • Adsorption arm adopts fast dismantling type chuck slide plate which can save the adjusting time.
  • Simple operation and easy maintenance.

Specifications

Robot system
Specifications
(Special Spec. is acceptable)
Type
WRB – 120
WRB – 150
WRB – 180
WRB – 230
Pitch
mm
1000 ~ 1200
1300 ~ 1500
1600 ~ 2000
2000 ~ 2500
Lift Stroke
mm
40 ~ 60
Cycle time
sec
3.3
3.8
4.2
4.8
Clamp type
Vacuum / Electric magnet
Drive
kw
Servo moto

Note:- Standard and optional accessories shown and mentioned are indicative. An offer will contain all aspects of supply. The above is only for an Idea.

Check out the technical data sheet and machine details in our brochure
